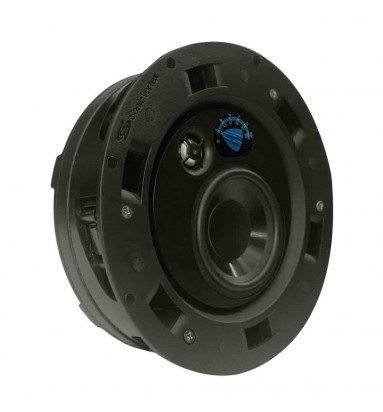

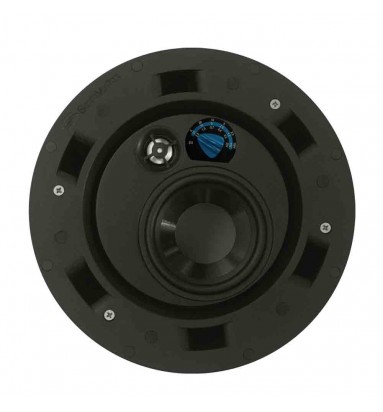

Beale Street 4" 25/70/100V In Ceiling 2 Way Speaker (Single)

TU401

• Woofer: 4” Ribbed Injected Polypropylene Cone

• Tweeter: ¾” Aluminum Dome

• Surround: Butyl Rubber

• Sonic Vortex Ported Transmission Line Enclosure

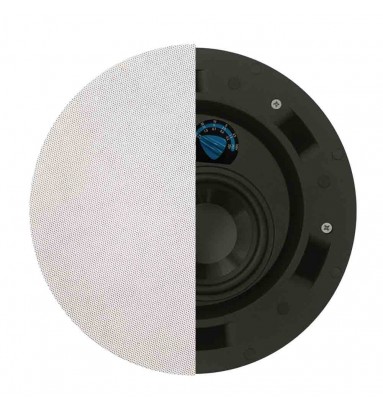

• Grille: Magnetic Bezelless; White - Paintable

• Connector Type: Four-position Plug-in Screw Terminal

$299.00 RRP


Data sheet
100V Taps
15, 7, 3.8, 1.9 W
25V Taps
1.8, 0.9, 0.5, 0.3, 0.2 W
70V Taps
15, 7.5, 3.8, 1.9, 1 W
Cutout Dimensions
162mm
Depth
70.2mm
Diameter
241.4mm
Efficiency
88dB
Frequency Response
62Hz-20kHz
Impedence
8 ohm
Power Rating
5-80 W
Weight
1.33kg
More info

Performs great as a combo audio speaker and paging speaker. Our Sonic Vortex® technology generates rich, deep bass and effortless clarity from what most people would call a 'back box', but is not. It is actually a compact, integrated tuned enclosure. This patented technology is a ‘twist’ on Ported Transmission Line design, that optimizes air movement to produce astonishing sound. The enclosure also keeps sound from bleeding to other rooms while adding 6 to 9dB boost in mid-lower bass. Designed to play in full range mode only.

Download
