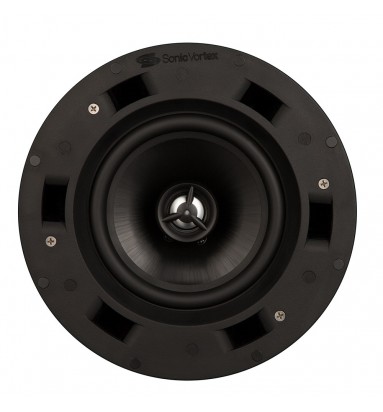

Beale Street 8" 25/70/100V In Ceiling 2 Way Speaker (Single)

TIC801

• Woofer: 8" Ribbed Injected Polypropylene

• Frequency/Crossover Setting: Full Range Mode Only

• Tweeter: 1" Aluminum Dome

• Surround: Butyl Rubber

• Coaxial Tweeter Design

• Grille: Magnetic Bezelless; White - Paintable

• Connector Type: Push Terminals

$499.00 RRP


Data sheet

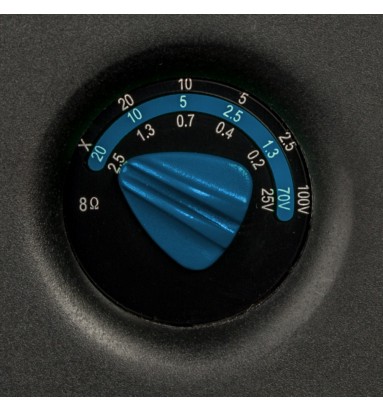

100V Taps
30, 15, 7.5, 3.8 W
25V Taps
3.5, 1.8, 0.9, 0.5, 0.3 W
70V Taps
30, 15, 7.5, 3.8, 1.9 W
Cutout Dimensions
261.5mm
Depth
219.5mm
Diameter
284mm
Efficiency
91dB
Frequency Response
38Hz-20kHz
Impedence
8 ohm
Power Rating
5-120 W
Weight
3.2kg
More info

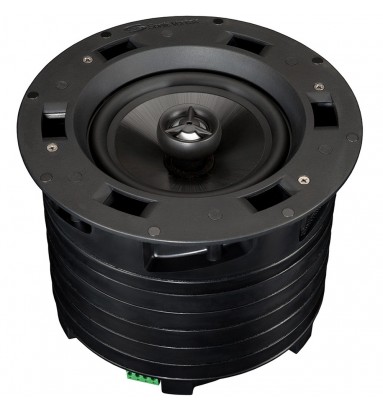

Performs great as a combo audio speaker and paging speaker. Our Sonic Vortex® technology generates rich, deep bass and effortless clarity from what most people would call a 'back box', but is not. It is actually a compact, integrated tuned enclosure. This patented technology is a ‘twist’ on Ported Transmission Line design, that optimizes air movement to produce astonishing sound. The enclosure also keeps sound from bleeding to other rooms while adding 6 to 9dB boost in mid-lower bass. Designed to play in full range mode only.
