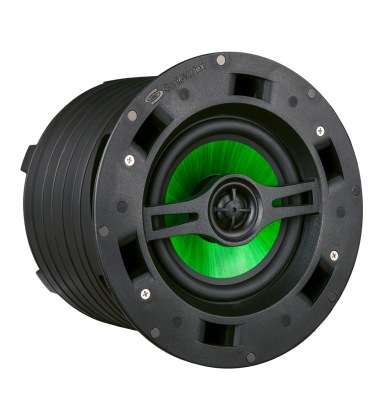

Beale Street In Ceiling 6.5" 2 Way Dual Voice Coil Speaker (Single)
IC6DVC-B
• 6.5” Polypropylene Woofer
• 1” Dual Voice Coil Silk Dome Tweeter
• Butyl Rubber Surround
• Pivoting Tweeter
• Grille: Magnetic Bezelless; White - Paintable
• Connector Type: 4 Pin Terminal
Data sheet
Cutout Dimensions
214mm
Depth
172mm
Diameter
239mm
Efficiency
91dB
Frequency Response
46Hz-22kHz
Impedence
8 ohm
Power Rating
5-90 W
Weight
3.18kg
More info
Our Sonic Vortex® technology generates rich, deep bass and effortless clarity from what most people would call a 'back box', but is not. It is actually a compact, integrated tuned enclosure. This patented technology is a ‘twist’ on Ported Transmission Line design, that optimizes air movement to produce astonishing sound. The enclosure also keeps sound from bleeding to other rooms while adding 6 to 9dB boost in mid-lower bass.
Download
- IC6-DVC-B
Specifications
