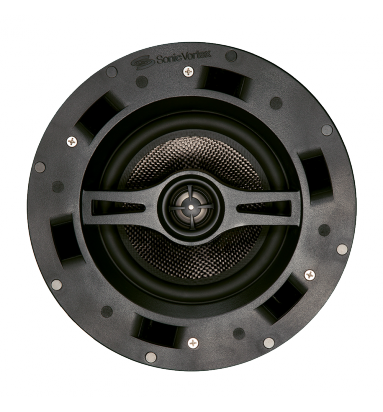

Beale Street In-Ceiling Angled 6.5" 2 Way Speaker (Single)
ICA6-MB
• 6.5” Ribbed Injected Polypropylene Woofer
• 1” Aluminum Dome Tweeter
• Butyl Rubber Surround
• Pivoting Tweeter
• 15 Degree Angled Woofer

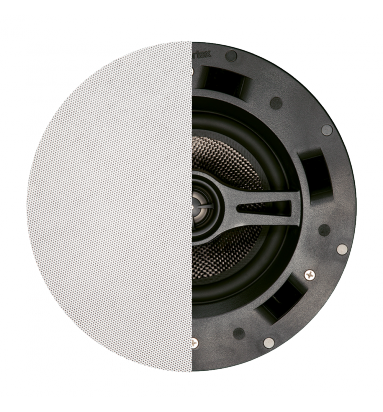

• Grille: Magnetic Bezelless; White - Paintable
• Connector Type: Gold Spring Push Terminal
Data sheet
Cutout Dimensions
214mm
Depth
172mm
Diameter
239mm
Efficiency
89dB
Frequency Response
46Hz-22kHz
Impedence
8 ohm
Power Rating
5-120 W
Weight
3.16kg
More info
Our Sonic Vortex® technology generates rich, deep bass and effortless clarity from what most people would call a 'back box', but is not. It is actually a compact, integrated tuned enclosure. This patented technology is a ‘twist’ on Ported Transmission Line design, that optimizes air movement to produce astonishing sound. The enclosure also keeps sound from bleeding to other rooms while adding 6 to 9dB boost in mid-lower bass.
Download
- ICA6-MB
Specifications
